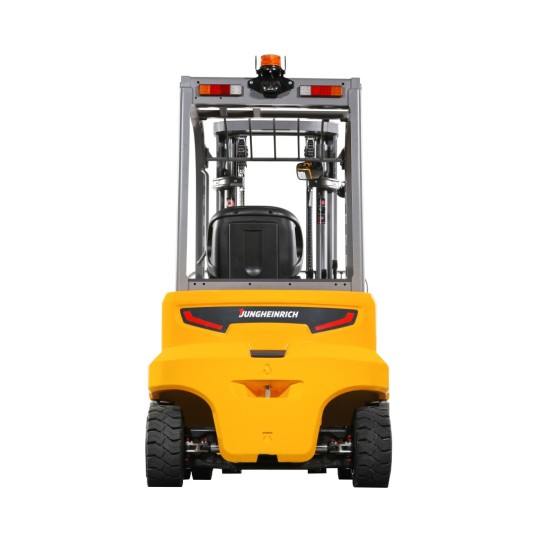

Jungheinrich EFG BC 330 counterbalance truck
Jungheinrich EFG BC 330 counterbalance truck
Jungheinrich EFG BC 330 counterbalance truck
Jungheinrich EFG BC 330 counterbalance truck: Sideshift
Jungheinrich EFG BC 330 counterbalance truck: Combi lights, strobe light, blue Floor-Spot
Jungheinrich EFG BC 330 counterbalance truck: Panoramic rear-view mirror
Jungheinrich EFG BC 330 counterbalance truck: Roof window

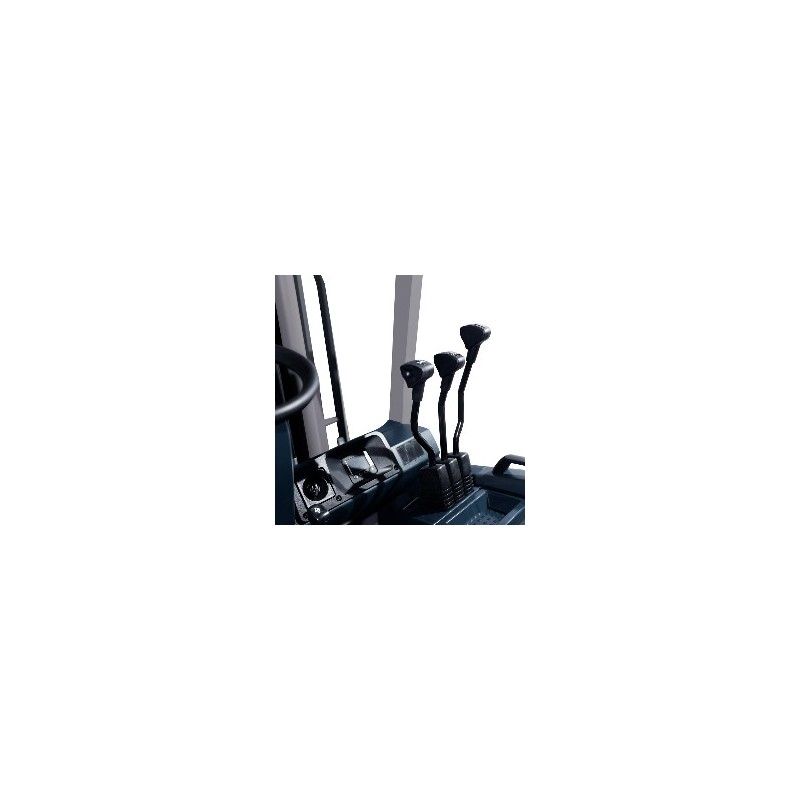

Jungheinrich EFG BC 330 counterbalance truck: Steering rods
Jungheinrich EFG BC 330 counterbalance truck: Lead acid battery
Jungheinrich EFG BC 330 counterbalance truck: Example of use
Jungheinrich EFG BC 330 counterbalance truck: Example of use
Jungheinrich EFG BC 330 counterbalance truck: Example of use
Jungheinrich EFG BC 330 counterbalance truck
Jungheinrich EFG BC 330 counterbalance truck
Jungheinrich EFG BC 330 counterbalance truck
Jungheinrich EFG BC 330 counterbalance truck: Sideshift
Jungheinrich EFG BC 330 counterbalance truck: Combi lights, strobe light, blue Floor-Spot
Jungheinrich EFG BC 330 counterbalance truck: Panoramic rear-view mirror
Jungheinrich EFG BC 330 counterbalance truck: Roof window
Jungheinrich EFG BC 330 counterbalance truck: Steering rods
Jungheinrich EFG BC 330 counterbalance truck: Lead acid battery
Jungheinrich EFG BC 330 counterbalance truck: Example of use
Jungheinrich EFG BC 330 counterbalance truck: Example of use
Jungheinrich EFG BC 330 counterbalance truck: Example of use
3000 kg
3000 kg

Description

Simple and impressively powerful electric counterbalance forklift trucks EFG | BC Series

The powerful and rock-solid EFG electric four-wheel counterbalance forklift trucks in the BC Series are perfectly suited to a wide range of transport and stacking tasks. With robust mast feature and a high residual capacity of up to 5 meters, they offer the optimum combination of stability and maneuverability.

Key Features

  • Dual-motor front-wheel drive with ZF gearbox: Ensures maximum performance with low consumption and a minimized turning radius.
  • Stability and safety: High-pivot steering axle provides even weight distribution and compensates for rough surfaces.
  • Energy efficiency: Proven AC technology, regenerative braking, and maintenance-free dual motors for long operating times and low energy consumption.
  • Safety and comfort: curveCONTROL for automatic speed reduction.
  • Optimum price/performance ratio: stringent quality tests and robust components guarantee reliable operation and low wear at all times.
Capacity (Q)
3000 kg
Mast Type
Three-stage / Triplex mast with free lift (DZ)
Lift (h3)
5000 mm
Free lift (h2)
1540 mm
Retracted mast height (h1)
2260 mm
Extended mast height (h4)
5750 mm
Fork dimensions
45 x 125 x 1200 mm
Sideshift
Hooked on
Lights
2x combi lights, rear
2x working light LED, front
Blue Floor-Spot
Strobe light
Working light, rear
Additional equipment
Acoustic warning buzzer when reversing
Load guard
Panoramic rear-view mirror
Roof window, plastic
Drive motor, performance S2 60 min
4,6 kW
Travel speed, laden/unladen
17 / 18 km/h
Lift motor, performance with S3
15,5 kW
Lift speed with/without load
0,3 / 0,32 m/s
Lowering speed with/without load
0,51 / 0,55 m/s
Max. gradeability laden/unladen
15 / 22 %
Battery type
Lead acid battery
Battery voltage
48 V
Battery capacity
625 Ah
Charger
D 400 G48/120
Wheels, number front/back (x-driven)
2x / 2
Tyres
Super-elastic (SE), non-marking
Energy consumption according to EN cycle
6,88 kWh/h
CO2 equivalent as per EN 16796
3,7 kg/h

Jungheinrich EFG BC 330 DZ 500

Electric four-wheel counterbalance forklift truck with load capacity of 3t

  • Triplex DZ mast 5000 mm
  • Strong and concise design
  • Energy-efficient operation
  • Comfortable and safe operation
  • IN STOCK!

€34,500.00
€31,050.00 You Save 10%
Tax excluded
Jungheinrich-EFG-BC-330-DZ-500-F5016613
Status: In stock (JH-SI local warehouse)

Delivery: In 2-5 days
